THE INNOVATIVE
DRILL-EXTINGUISHER
DRILLING & EXTINGUISHING IN ONE DEVICE
DRILL-X is the first extinguishing tool that combines drilling and extinguishing in one device. DRILL-X is designed in unprecedented efficiency to extinguish difficult to reach fires without any safety risk and additional oxygen input.
The revolutionary drive and innovative drilling technology ensure to penetrate to the origin of a fire in less than 20 seconds. The precise and manually adaptive water mist extinguishes the fire within seconds.
DRILL-X revolutionizes firefighting through its effectiveness, safety and flexibility. The unique strength of DRILL-X is particularly evident in fires which are difficult to access.
1. PICK AND PLACE
Connection to standardized pressure hose on exisiting vehicle applicable.
2. POSITIONING
By aerial ladder on roofs or walls for the external attack close to the fire source.
3. DRILLING
Driven by hydraulic energy of the water for firefighting. Penetration of the basic structure of a building within a few seconds.
4. EXTINGUISHING
Targeted extinguishing of the fire source through manually adjustable spray angle and finest atomization of the water drops.
SAFE
Dangerous or so far uncontrollable situations can be brought under control within shortest time.
RAPID
Access from the outside to the origin of the fire takes place in shortest amount of time with no additional external oxygen import.
FLEXIBLE
Ready to use on any existing vehicles with standard equipment.
EFFECTIVE
Due to finest atomization of waterdrops an extremely large cooling surface can be produced and water up to 800 l/min is fed directly into the origin of the fire.
APPLICATION AREAS
Depending on the fire situation, three different drilling systems can be quickly attached to the DRILL-X. The respective materials can be penetrated in just a few seconds - precisely, efficiently and tailored to the requirements on site.
UNIVERSAL DRILLING SYSTEM
The universal drilling system is the all-rounder among the DRILL-X drilling systems. It was specially developed for classic building constructions such as roof trusses, drywalls or insulated facades.
METAL DRILLING SYSTEM
The metal drilling system extends the application range of DRILL-X to the industrial and infrastructural sector. It enables fast and controlled penetration of a wide range of metal materials such as transport containers or aircraft cargo holds.
CONCRETE DRILLING SYSTEM
The concrete drilling system was developed for particularly resistant materials and solid building constructions. It reliably penetrates reinforced concrete, brickwork, natural stone or other solid materials.
How DRILL-X works
DEALERS & DISTRIBUTION PARTNERS
Depending on the fire situation, three different drilling systems can be quickly attached to the DRILL-X. The respective materials can be penetrated in just a few seconds - precisely, efficiently and tailored to the requirements on site.
PARTNERSHIP
Interested in a partnership?
Contact us – we'll get back to you shortly.
We are loooking for dealers in:
WHERE
Houses
Halls
Historical buildings
Industry
Containers
Airports
Ports / Ships
HOW
Penetration of the exterior shell:
Roof
Wall
WHEN
Very high fire load
Inaccessible source of fire
Closed structure
No direct access to the fire area
WATCH OUR VIDEO
FAQ
Frequently Asked Questions
Key answers about DRILL-X – safety, technology, operation, and availability
DRILL-X is the first extinguishing device that combines drilling and extinguishing in a single device. It was developed to efficiently fight hard-to-reach fires without safety risk and without introducing additional oxygen.
DRILL-X can drill through all common building materials: wood, panels, steel, concrete, garage doors, fire doors and similar materials. Practically any enclosed space can be accessed — roof structures, walls (brick, concrete, wood), containers, ships, aircraft and railway cars.
Depending on the fire situation, three different drilling systems can be quickly mounted on DRILL-X. The Type A universal drilling system is suitable for roof trusses, drywalls, insulated facades and similar structures. The Type B metal drilling system is designed for steel with a tensile strength of up to 1 000 MPa, as well as aluminium, copper and similar materials. The Type C concrete drilling system is designed for reinforced concrete, brick masonry, natural stone and similar materials.
A standard C-hose coupling is all that is required to deploy DRILL-X. Because DRILL-X operates with standard low-pressure extinguishing water, no additional pumps or abrasives are required.
DRILL-X is powered exclusively by extinguishing water — from a fire truck, a fire pond with a pump, or a hydrant with a pump. Salt water can also be used; after use, DRILL-X must be flushed with clean fresh water.
DRILL-X delivers up to 800 l/min of water into the fire compartment. The water is atomised into a fine mist, providing extremely high cooling efficiency. CAFS and heavy foam can be added if required.
The operation of DRILL-X is simple and designed for practical use. Once the water supply is established, the device is immediately ready for use and can be operated safely and precisely by a single firefighter. The manually adjustable spray angle allows flexible adaptation to the respective operational situation.
-
Connect to any low-pressure pump — compatible with existing equipment.
-

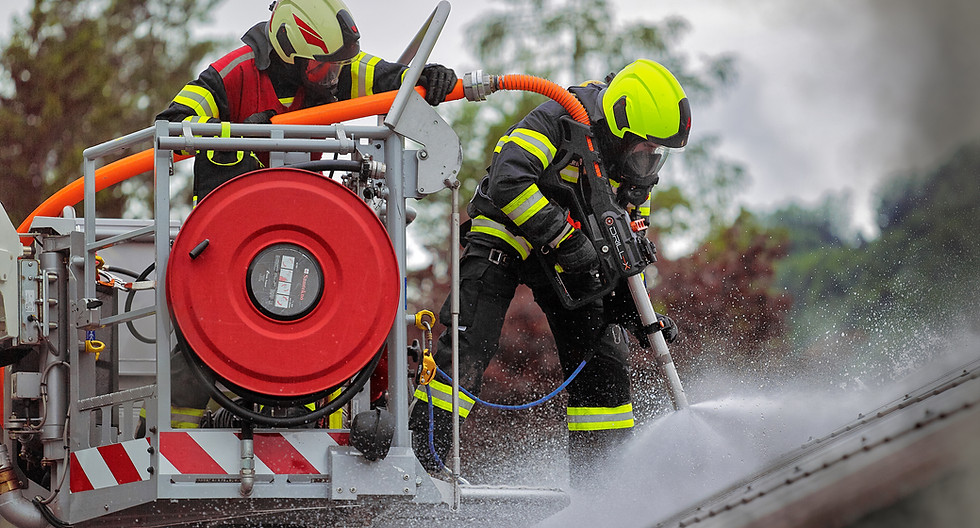

Position on the roof (e.g. using an aerial ladder) or against walls for an exterior attack near the seat of the fire.
-
Drill — powered by the hydraulic energy of the extinguishing water, penetrating the structure within seconds.
-
Extinguish — targeted firefighting using a manually adjustable spray angle and an ultra-fine water mist.
-
DRILL-X can be operated safely and precisely by a single firefighter.
DRILL-X operates at a low pressure of 8–10 bar and is powered by an integrated water turbine. The extinguishing flow rate is up to 800 l/min — without abrasives. DRILL-X connects directly to the fire truck, eliminating the need for additional equipment. There are no maintenance costs, and at 10 kg, the device is ideal for single-person operation.
DRILL-X makes firefighting safer because crews do not have to enter the fire compartment during the acute phase of the fire. Nobody has to enter the danger zone, and the risk of flashover is significantly reduced. Hard-to-reach fires can be fought without direct personal contact — DRILL-X can be operated by a single firefighter.
For a standard cold-roof structure, the average drilling time is 20 seconds.
For solid steel, the average drilling speed is 10 mm/min.
The average cutting speed in reinforced concrete is 20–40 mm/min.
No. PV systems must not be drilled through. The same firefighting regulations apply as for all live electrical installations.
No. To minimize the risk of electric shock and the release of chemicals, a low-risk operational tactic should be chosen — for example, allowing the vehicle to burn out under controlled conditions or flooding it inside a container. This also makes it easier to collect and control contaminated extinguishing water.
DRILL-X is maintenance-free — there are no annual maintenance costs. Only wear and spare parts need to be replaced when required.
Service is provided by your local dealer or directly by the manufacturer, SYNEX TECH GmbH.
DRILL-X can be purchased directly from the manufacturer, SYNEX TECH GmbH. Regional dealers are also available and are listed on the DRILL-X website. They provide purchase advice and further information.
